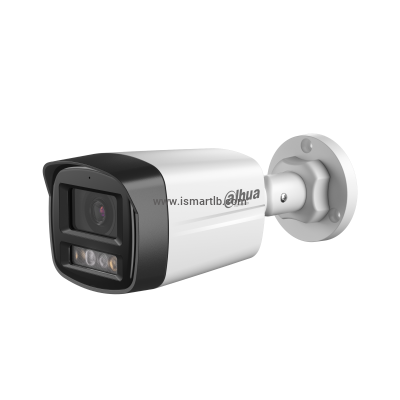

DAHUA IP CAMERA 4MP 2.8MM OUTDOOR DH-IPC-HFW1439TL1-A-IL

Camera Image Sensor 1/2.9" CMOS Max. Resolution 2560 (H) × 1440 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.006 [email protected] (Color,30 IRE) 0.0006 [email protected] (B/W,30 IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance Up to 30 m (98.43 ft) (IR LED) Up to 30 m (98.43 ft) (Warm light) Illuminator On/Off Control Auto;Manual Illuminator Number 2 (IR LED); 2 (Warm light) Angle Adjustment Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm;3.6 mm Max. Aperture F1.6 Field of View 2.8 mm: H: 94°; V: 52°; D: 111° 3.6 mm: H: 78°; V: 41°; D: 94° Iris Control Fixed Close Focus Distance 2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.7 m (5.58 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 64.0 m (209.97 ft) 25.6 m (83.98 ft) 12.8 m (41.99 ft) 6.4 m (21.00 ft) 3.6 mm 85.4 m (280.18 ft) 34.2 m (112.20 ft) 17.1 m (56.10 ft) 8.5 m (27.89 ft) Intelligence Human and Vehicle Detection Support the classification and accurate detection of human and vehicle Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265 ; Smart H.264 Video Frame Rate Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto;Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/180° Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes, built-in Mic Audio Compression G.711a; G.711Mu; PCM; G.726 Alarm Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human and vehicle); security exception Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P Interoperability ONVIF (Profile S; Profile T); CGI User/Host 6 (Total bandwidth: 24 M) Storage FTP Browser IE; Chrome; Firefox Management Software Smart PSS Lite; DSS; DMSS Mobile Client iOS;Android Cyber Security Configuration encryption;Trusted execution;Digest;Security logs;HTTPS;Trusted upgrade;WSSE;Trusted boot;Account lockout;Generation and importing of X.509 certification;Video encryption Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU Power Power Supply 12 VDC/PoE (802.3af) Power Consumption Basic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 intelligence on WDR illuminator intensity): 6.4 W (12 VDC); 7.7 W (PoE) Environment Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F) Operating Humidity ≤95% Storage Temperature –40 °C to 60 °C (–40 °F to 140 °F) Storage Humidity ≤95% Protection IP67 Structure Casing Material Metal plastic Product Dimensions 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H) Net Weight 0.31 kg (0.68 lb) Gross Weight 0.45 kg (0.99 lb) Download
