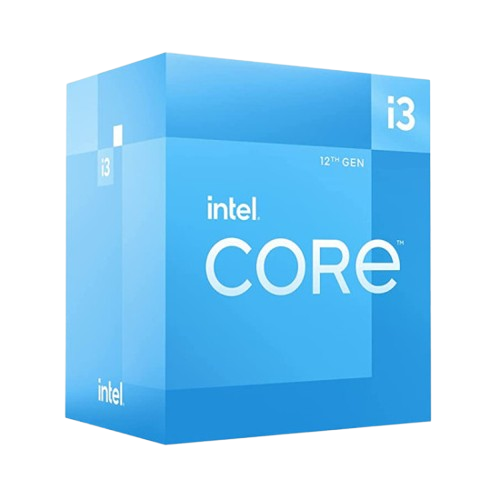

Intel Core i3-12100 Processor (12M Cache, up to 4.30 GHz)

Intel Core i3-12100 Processor (12M Cache, up to 4.30 GHz) Specification Essentials Product Collection: 12th Generation Intel® Core™ i3 Processors Code Name: Products formerly Alder Lake Vertical Segment: Desktop Processor Number: i3-12100 Status: Launched Launch Date: Q1’22 Lithography: Intel 7 Use Conditions: PC/Client/Tablet CPU Specifications Total Cores: 4 # of Performance-cores: 4 # of Efficient-cores: 0 Total Threads: 8 Max Turbo Frequency: 4.30 GHz Performance-core Max Turbo Frequency: 4.30 GHz Performance-core Base Frequency: 3.30 GHz Cache: 12 MB Intel® Smart Cache Total L2 Cache: 5 MB Processor Base Power: 60 W Maximum Turbo Power: 89 W Supplemental Information Embedded Options Available: No Memory Specifications Max Memory Size (dependent on memory type): 128 GB Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s Max # of Memory Channels: 2 Max Memory Bandwidth: 76.8 GB/s Processor Graphics Processor Graphics ‡: Intel® UHD Graphics 730 Graphics Base Frequency: 300 MHz Graphics Max Dynamic Frequency: 1.40 GHz Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1 Execution Units: 24 Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz Max Resolution (DP)‡: 7680 x 4320 @ 60Hz Max Resolution (eDP – Integrated Flat Panel)‡: 5120 x 3200 @ 120Hz DirectX* Support: 12 OpenGL* Support: 4.5 Multi-Format Codec Engines: 1 Intel® Quick Sync Video: Yes Intel® Clear Video HD Technology: Yes # of Displays Supported ‡: 4 Device ID: 0x4692 OpenCL* Support: 2.1 Expansion Options Direct Media Interface (DMI) Revision: 4.0 Max # of DMI Lanes: 8 Scalability: 1S Only PCI Express Revision: 5.0 and 4.0 PCI Express Configurations ‡: Up to 1×16 4, 2×8 4 Max # of PCI Express Lanes: 20 Package Specifications Sockets Supported: FCLGA1700 Max CPU Configuration: 1 Thermal Solution Specification: PCG 2020C TJUNCTION: 100°C Package Size: 45.0 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator: 3.0 Intel® Thread Director: No Intel® Deep Learning Boost (Intel® DL Boost): Yes Intel® Optane™ Memory Supported ‡: Yes Intel® Speed Shift Technology: Yes Intel® Turbo Boost Max Technology 3.0 ‡: No Intel® Turbo Boost Technology ‡: 2.0 Intel® Hyper-Threading Technology ‡: Yes Intel® 64 ‡: Yes Instruction Set: 64-bit Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States: Yes Enhanced Intel SpeedStep® Technology: Yes Thermal Monitoring Technologies: Yes Intel® Volume Management Device (VMD): Yes Security & Reliability Intel® Threat Detection Technology (TDT): Yes Intel® Standard Manageability (ISM) ‡: Yes Intel® AES New Instructions: Yes Secure Key: Yes Intel® OS Guard: Yes Execute Disable Bit ‡: Yes Intel® Boot Guard: Yes Mode-based Execute Control (MBEC): Yes Intel® Control-Flow Enforcement Technology: Yes Intel® Virtualization Technology (VT-x) ‡: Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes Intel® VT-x with Extended Page Tables (EPT) ‡: Yes Warranty 3 Years Note* Price, feature and specifications are subject to change without notice
