Haskel 27962 Oxygen Booster

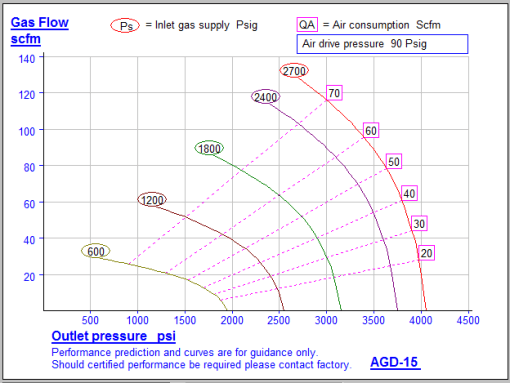

Haskel 27962 Oxygen Gas Booster NOTE: this is a version of the model AGD-15 Gas Booster modified for OXYGEN service.Features & Benefits:Reliable, easy to maintain, compact and robustNo heat, flame or spark riskInfinitely variable cycling speed and outputPneumatic driven units do not require electrical connectionsEasy to apply automatic controlsNo limit or adverse affect to continuous stop/start applicationsSeal systems designed for long working lifeNo air line lubricator requiredHydrocarbon free – separation between air and gas sectionsBuilt-in cooling (most models)Suitable for most gasesAbility to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heatTechnical Data:Ratio: 15:1Min GAS supply pressure: 50 psiMax GAS supply pressure: 5000 psiMax rated GAS outlet pressure: 5000 psiStatic outlet stall pressure formula: 15 Pa Ps (Pa = air drive pressure; Ps = gas supply pressure)Min AIR drive pressure: 20 psiMax AIR drive pressure: 150 psiSample Performance Characteristics:Boost 6.7 SCFM Gas from 300 psi to 1200 psi while using 40 SCFM Air @ 90 psig supply pressureBoost 21.5 SCFM Gas from 900 psi to 1800 psi while using 40 SCFM Air @ 90 psig supply pressureBoost 36.1 SCFM Gas from 1500 psi to 2400 psi while using 40 SCFM Air @ 90 psig supply pressureBoost 50.3 SCFM Gas from 2100 psi to 3000 psi while using 40 SCFM Air @ 90 psig supply pressurePhysical Characteristics:Unit weight: 35 lbs.Displacement / cycle: 12.4 cu. in.Max cycles: 60/min.GAS inlet/outlet connections: Interchangeable 3/8″ SAE or 1/4″ HP (2 inlet & 2 outlet)AIR drive inlet port: 1/2″ FNPTHaskel 27962 Oxygen Booster Repair kit information:Gas section seal kit P/N: 51548-15 (2 req’d)Air drive section seal kit P/N: 51545-1Air valve seal kit P/N: 17329Check valves seal kit P/N: 17677 (2 req’d)Distance piece kit P/N: N/AOptional tools: 28584 (Sleeve Removal Tool); 16675 (Wrench for Gas Booster check valve seats); 17246 (Wrench for Gas Booster piston nut)Notes: 51548-15 Gas Section kit includes piston seals; 17677 Check Valve Seal Kit includes check valve seals.Optional Modifications:C-8: Air filter, regulator with gauge, and manual start/stop17860: Electrical stroke counter25721: Mechanical stroke counter29376: Three-way cycling spool29702: Single-stroke modification50341: Low permeability seals for CO2 gas service51050: Extreme service cycling modification54827: Level II cleaning and certification of gas sections56611-2: Vent purge with 15 psi relief57875: Panel with regulator for mounting remote APS59888: Cycle timer80862: Viton air drive seals82500: ATEX modification86337: Extended life air drive seals To add any modifications to this booster or for assistance in selecting the right booster for your application, please contact our Sales Department for assistance.   Product Catalog: Gas Booster Catalog  Installation Documents: SKIS-001  SKIS-002  SKIS-005  SKIS-014
