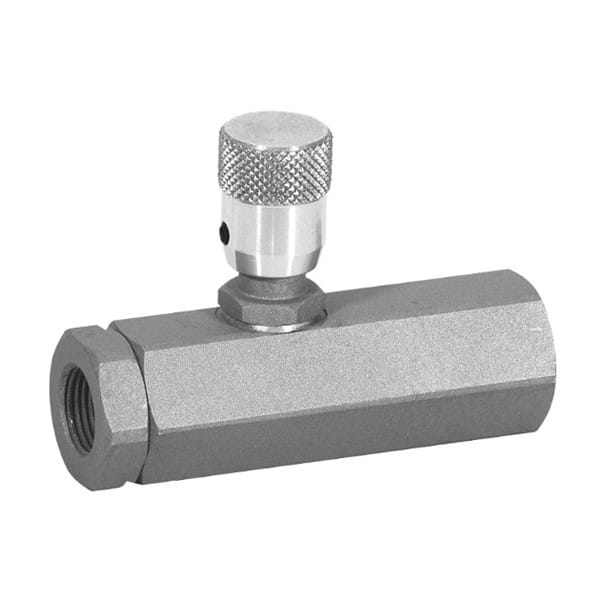

G04 Flow Control with Check Valve

Your Name Your Email Subject Your Message (optional) 1/4″ Flow Control with Check ValveVRFU90 Series Type: Flow Control Valve 90° Flow Regulator with Check Valve – Poppet type Needle Valve with Reverse Flow Check Valve Port A Thread: 1/4” Female BSP = G04 Port B Thread: 1/4” Female BSP = G04 Max Flow from port A to B: 10L/min Max Flow from port B to A: 15L/min Cracking Pressure for Poppet Type: 0.5Bar Max Pressure: 350 Application These valves adjust the flow speed in one direction.  In the opposite direction the flow is free. Good quality graduated adjustment. Installation Connect the actuator port to control with B valve port and pressure flow with A port. Operation When pressure flow goes from A port to B port it adjusts the actuator speed.  In the opposite direction from B port to A port the flow is free.  To adjust the flow, screw and turn the hand-knob in the desired direction slowly.  Screw down the stop socket screw to maintain the settings also in case of vibrations occur. Features Steel body Zinc plated steel body Low leakage Hardened internal components Poppet TypeOther know codes: H20/0, VRFU90-01-G, VRFU90-01, FC-FC-04S,FRU-01, FCCRX-, Y-FCCRX, FCC-, FCCG14N, FCG14NItems in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
